Wire length measurement sensors

Highly accurate distance measurement in harsh dredging and subsea environments

Overview

Subsea distance measurement sensor range designed to endure harsh operating conditions

The Wire Length Measurement (WLM) sensor range serves the dredging, subsea, and offshore industries as an accurate and high-performance sensor for reliable subsea distance and stroke measurement. As is required of dredging applications, the sensor range was designed to withstand severe operational conditions. A high level of robustness – achieved by high-quality materials and a solid mechanical design – combined with high accuracy explain why the range has greatly satisfied our customers and has been applied to a wide variety of mission-critical subsea equipment.

In addition to the delivery of stand-alone sensors, Seatools supplies full-fledged subsea monitoring and control systems, including all related sub-systems such as mechanics, software, electronics, controls, and more.

Application
  • The Wire Length Measurement sensor range can be applied to a wide variety of dredging, offshore, and subsea applications that require the measurement of distance. Typical applications include spud pole heights, hopper overflow measurements, subsea reservoir levels.
Key features
  • Robust design
  • Highly accurate
  • Durable housing
Applied to
  • Subsea hydraulic fluid reservoirs
  • DipMate® dredging visualization systems
  • Hopper overflow measurement

To ensure our clients choose the WLM sensor suited for their needs, we consult our clients during their selection process. We thoroughly investigate a client’s needs and in our recommendation take all relevant factors into consideration, such as measurement ranges, required accuracy, data communication, mounting possibilities, and vibrations.

Key Features

  1. Robust design

    WLM sensors are able to withstand the most extreme of conditions, such as shock loads and vibrations that occur during dredging operations. Their strength is enabled by a solid mechanical design and use of high-quality materials.

  2. Highly accurate

    The incorporation of a high-strength wire cable allows for high wire tensions that minimize wire catenary effects.

  3. Durable housing

    Enabled by carefully selected materials, an optimized mechanical design, and incorporation of numerous years of field feedback and experience.

Wire length measurment sensor for underwater distance measurement

Options

  • Various data output formats
  • Pre-cursor length
  • IP 67 design or up to 75 msw (WLM 5 UW)
  • Various electric connections
  • Horizontal or vertical mounting
  • Adjustable measurement range

WLM sensor range

  • Measurement range (m)
  • Accuracy
  • IP grade / depth rating
  • Interface
  • Measurement range (ft)
  • Accuracy
  • IP grade / depth rating
  • Interface

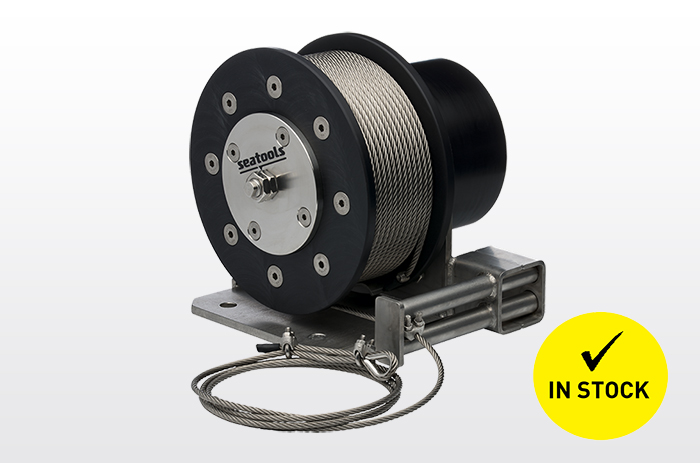

WLM 5

  • Measurement range (m)0 – 5
  • Accuracy0.15% over full range
  • IP grade / depth ratingIP 67
  • InterfaceAnalog (4 -20 mA, 0-10V) or digital
  • Measurement range (ft) 0 – 16.4
  • Accuracy 0.15% over full range
  • IP grade / depth rating IP 67
  • Interface Analog (4 -20 mA, 0-10V) or digital

WLM 10

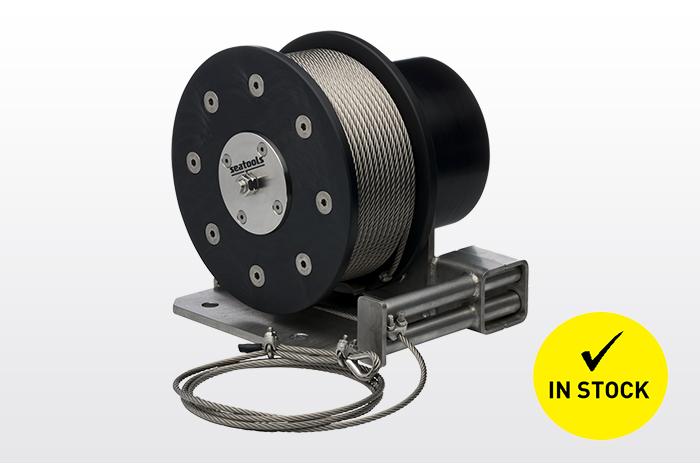

WLM 10 for hopper overflow process measurement at hopper dredgers
  • Measurement range (m)0 – 10
  • Accuracy0.15% over full range
  • IP grade / depth ratingIP 67
  • InterfaceAnalog (4 -20 mA, 0-10V) or digital
  • Measurement range (ft) 0 – 32.8
  • Accuracy 0.15% over full range
  • IP grade / depth rating IP 67
  • Interface Analog (4 -20 mA, 0-10V) or digital

WLM 5 UW

Subsea distance sensor WLM5UW
  • Measurement range (m)0 – 5
  • Accuracy0.15% over full range
  • IP grade / depth rating75 msw
  • InterfaceAnalog (4 -20 mA, 0-10V) or digital
  • Measurement range (ft) 0 – 16.4
  • Accuracy 0.15% over full range
  • IP grade / depth rating 246 ft
  • Interface Analog (4 -20 mA, 0-10V) or digital

WLM 5 UW 3000

  • Measurement range (m)0 – 5
  • Accuracy±0.35 % over full range
  • IP grade / depth rating3000 msw
  • InterfaceAnalog (4 -20 mA, 0-10V) or digital
  • Measurement range (ft) 0 – 16.4
  • Accuracy ±0.35 % over full range
  • IP grade / depth rating 9843
  • Interface Analog (4 -20 mA, 0-10V) or digital
