Subseapressure sensors
Highly accurate pressure measurement in harsh dredging and subsea environments
Overview
Subsea pressure sensor range designed to endure harsh operating conditions
The Pressit® underwater pressure sensor range serves the dredging and maritime industry as accurate and high-performance device for reliable and long-term (subsea) use. As is required for dredging applications, the pressure sensor was designed to last in a context of rough operations. Its level of endurance is achieved by the corrosion- and abrasion-resistant capacitive sensor with rugged ceramic measuring diaphragm, which offers high peak overload protection. Water hammer effects and pressure surges cannot damage the ceramic sensor diaphragm.
Our subsea pressure transducers come in a wide variety of models. In addition to the most popular range which is illustrated below, we are able to supply virtually any underwater pressure sensor, adapted to your case and requirements. Next to the delivery of stand-alone sensors, Seatools supplies full-fledged subsea monitoring systems, which include all related sub-systems: mechanics, software, electronics, controls, and more.
- Application
-
- Pressit® subsea pressure sensors can be applied to a wide range of dredging, offshore, and subsea equipment, such as dredging suction pipes, dredging pumps, ROVs, vessels, and pontoons.
- Key features
-
- Robust design
- A pressure sensor for every application
- Highly accurate
- Applied to
-
- Pile Stick-up Measurement System
- DipMate® dredging visualization system
- 420 pressure sensors have been delivered in 31 different configurations
We consult clients during their selection process to ensure they opt for the right pressure sensor. In our recommendation, we take into consideration pressure ranges, required accuracy, system setup, data communication, mounting possibilities, vibrations, and other factors that are relevant to your situation.
Key Features
-
Robust design
Pressit® subsea pressure transmitters are able to withstand the most severe of conditions, such as shock loads and vibrations during dredging operations. Their rugged ceramic measuring diaphragm, furthermore, offers high peak overload protection.
-
Highly accurate
Enabling for very high system accuracies, Pressit® subsea pressure transmitters have been applied to subsea monitoring systems at many occasions.
-
Highly customizable
All Pressit® subsea pressure transmitters can be configured to suit your application and meet your requirements. This shows from the fact that as many as 31 different configurations have been delivered to date. Adjustments can be made with variations in pressure ranges, data communication, mounting options, accuracies, and factory testing and qualification programs.
Other Features
- Overload protection
- Various possible electric connections
- Various possible mounting options
- Field-proven, durable design
- Delivery can include cable and/or hose assembly
Pressit® sensor range
Overview of most popular models
- Typical applications
- Depth rating (msw)
- Type
- Pressure range (bar)
- Typical applications
- Depth rating (ft)
- Type
- Pressure range (psi)

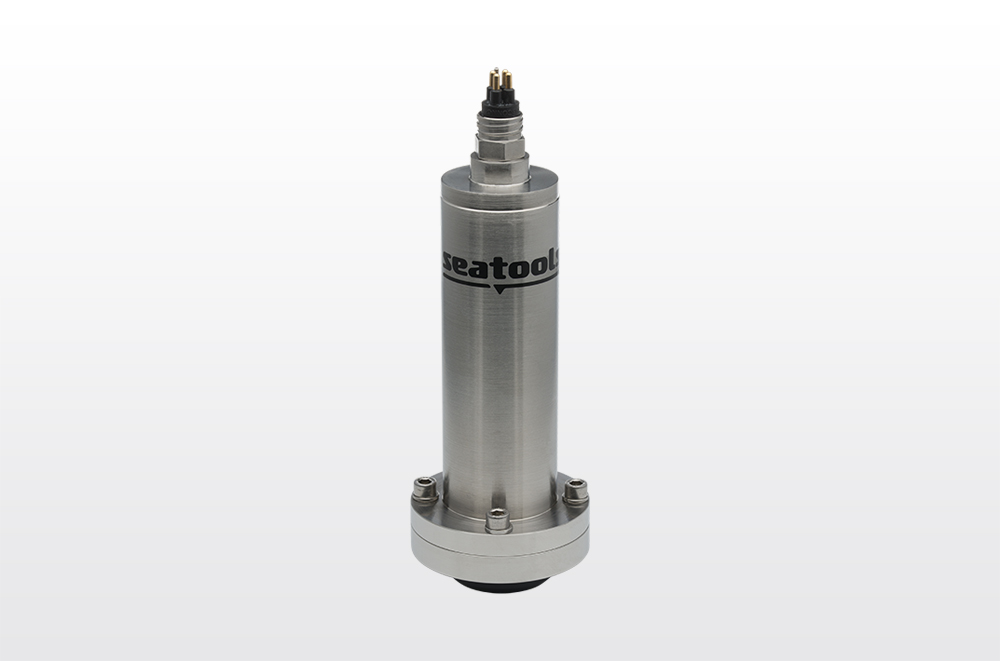

Pressit® Depth
- Typical applications
Water depth measurement
(e.g. ROV) - Depth rating (msw)1000
- TypeAbsolute
- Pressure range (bar)0 - 100
- Typical applications Water depth measurement
(e.g. ROV) - Depth rating (ft) 3281
- Type Absolute
- Pressure range (psi) 0 – 1450.4

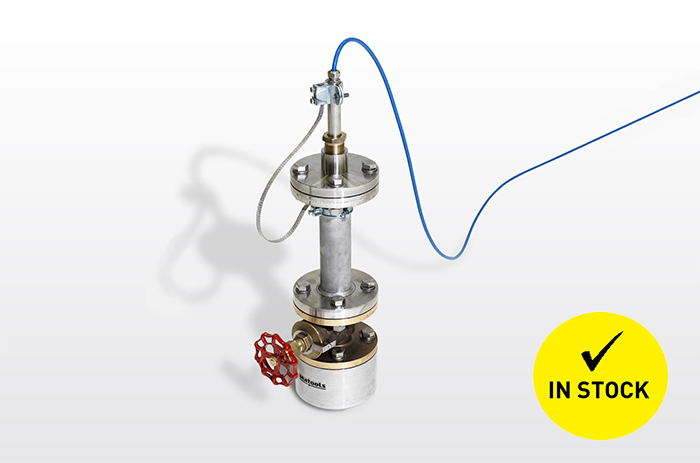

Pressit® FM45
- Typical applications
Draught measurement
(flush mounted) - Depth rating (msw)-
- TypeAbsolute & relative
- Pressure range (bar)0 - 2,5
- Typical applications Draught measurement
(flush mounted) - Depth rating (ft) -
- Type Absolute & relative
- Pressure range (psi) 0 – 36,3

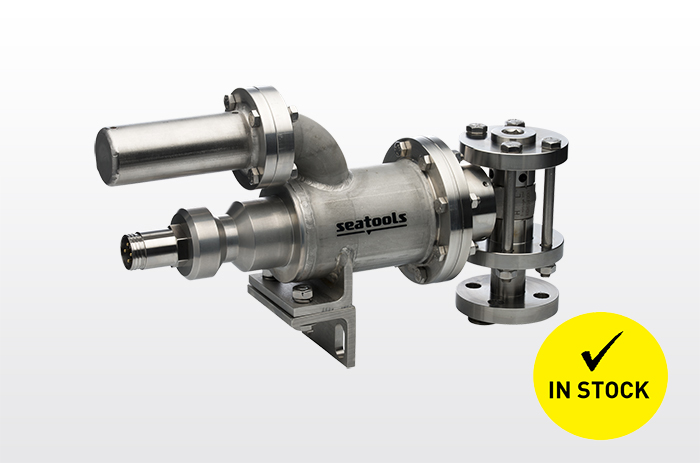

Pressit® Delta HD
- Typical applications
Pressure measurement dredging systems - Depth rating (msw)200
- TypedP
- Pressure range (bar)-2 - + 2
- Typical applications Pressure measurement dredging systems
- Depth rating (ft) 656
- Type dP
- Pressure range (psi) -29.0 - + 29.0

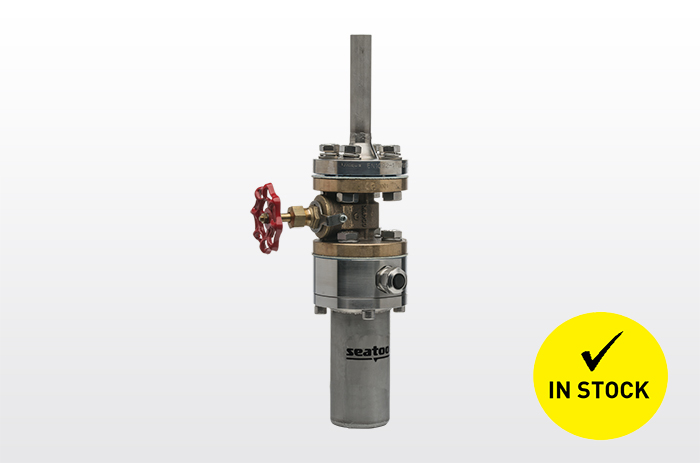

Pressit® ND16
- Typical applications
Pressure measurement dredging systems - Depth rating (msw)200
- TypeAbsolute & relative
- Pressure range (bar)0 - 25
- Typical applications Pressure measurement dredging systems
- Depth rating (ft) 656
- Type Absolute & relative
- Pressure range (psi) 0 – 362.6
Pressit® ND16-60
- Typical applications
Draught measurement
(non flush) - Depth rating (msw)50
- TypeAbsolute & relative
- Pressure range (bar)0 - 4
- Typical applications Draught measurement
(non flush) - Depth rating (ft) 164
- Type Absolute & relative
- Pressure range (psi) 0 – 58.0
Pressit® HD
- Typical applications
Precision pressure measurement in harsh conditions - Depth rating (msw)90
- TypeAbsolute
- Pressure range (bar)0 - 10
- Typical applications Precision pressure measurement in harsh conditions
- Depth rating (ft) 295
- Type Absolute
- Pressure range (psi) 0 - 145
MULTIMEDIA

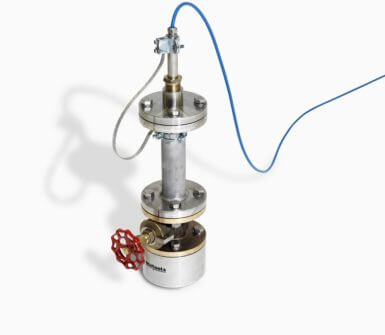

The FM45 sensor was designed specifically for draught measurement of various kinds of vessels and pontoons. The transmitter system includes a valve for safe and easy removal of the sensor, even when the vessel floats. The valve can be delivered with Lloyd’s or DNV certification and supplied with a welding flange, which can be welded onto the ship’s hull.

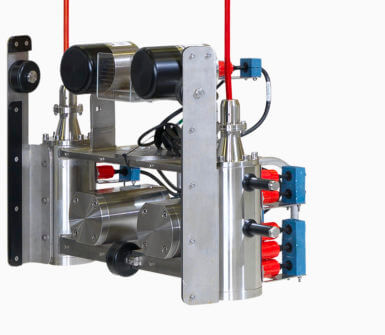

Applied to measurement head of Pile Stick-up Measurement System. The sensors accurately measure absolute pressure, on the basis of which pile stick-up height can be determined with high accuracy.
